Liquid filtration housing — SS 316L

PF-EG
Stainless Steel Liquid Filtration Housing

Stainless steel 1.4404 (316L) housing for beverages, pharmaceutical and other liquid applications — 10 bar at 50 °C for the sizes 0012 to 0450, 8 bar for 0675–1800 (−10/90 °C), 12 to 2,400 l/min. Milkpipe acc. to DIN 11851 Standard · Top of housing DN 40 clamp connection.

PED 2014/68/EU · standard sizes 0012–0675 10 bar @ 50 °C (0012–0600) Sizes 0012–2400 · 12–2,400 l/min
10 bar @ 50 °C
Max pressure (liquids, 0012–0600)
DIN 11851
Milkpipe connection · DN 40 clamp at housing top
up to 180 °C
Temperature (gasket/element-dependent)
SS 316L
Body material
0012–2400
12 standard sizes 0012–0675 · four large sizes 0900–2400
Elements
PF cartridges

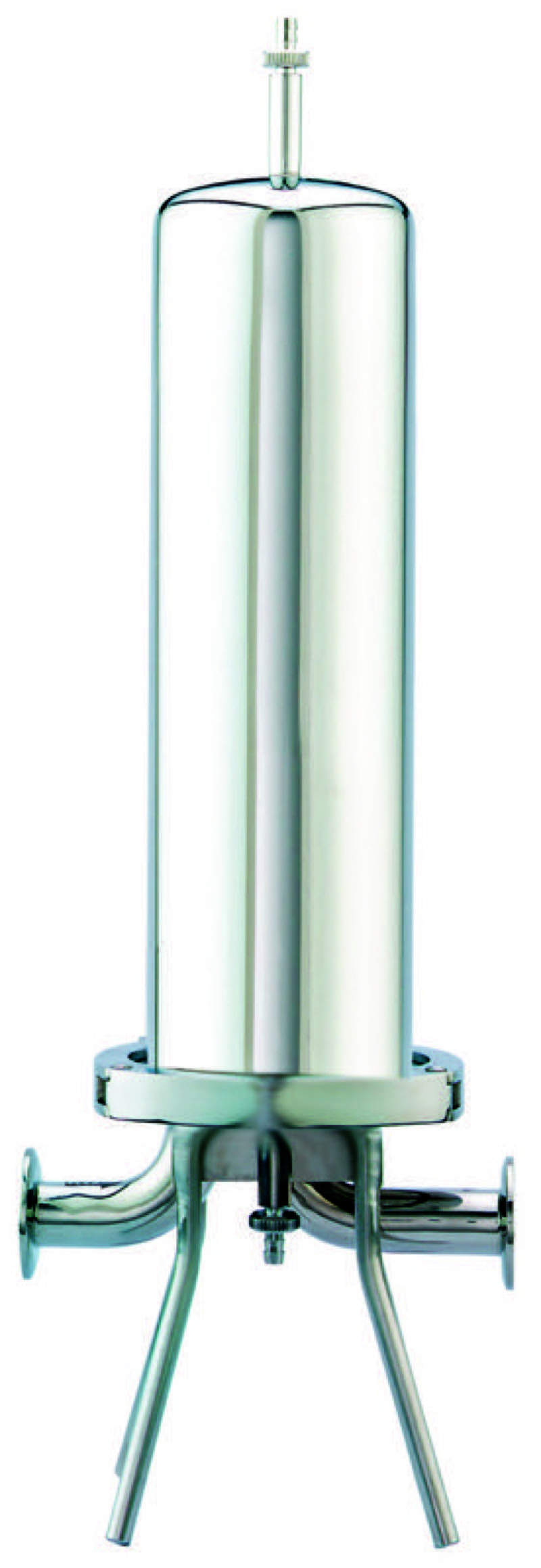

PF-EG housing
PF-EG — Stainless Steel Liquid Filtration Housing
Sizes available
0012–2400 · 12 standard sizes, 0012 to 0675 · Four large sizes, 0900 to 2400
Housing Specification
Body materialSS 1.4404 (316L)
Max pressure10 bar @ 50 °C (0012–0600) · 8 bar (0675–1800) · 6 bar g design (2400)
Temperatureup to 180 °C (gasket/element-dependent); saturated steam 3.7 bar at 150 °C; type 0600: 3 bar at 144 °C · 0675–1800: −10/90 °C (liquids), 2400: 110 °C design
Flow range0012 to 0675, cover 12 to 675 l/min (3.2 to 178 gpm) · large sizes 0900 to 2400 up to 2,400 l/min
ConnectionMilkpipe acc. to DIN 11851 Standard · Top of housing DN 40 clamp connection · 2400: Clamp DN150 (DIN 32676-B)
Construction & Compatibility
SealsEPM (std) · other gasket materials on request
Sizes12 standard sizes, 0012 to 0675 · Four large sizes, 0900 to 2400
DoCPED 2014/68/EU · standard sizes 0012–0675 · large sizes on request
Compatible elementsPF-PES · PF-PP · PF-PT · PF-PVDF · PF-N6
Quick Actions
Request a Quote → Talk to an Engineer Download Datasheet → Size your housing →
Certifications
Replacing a competitor?
Look up your current part number
Cross-Reference Tool →
Housing Family
PF-EG — Filter Housing Range
CodeMaterialMax pressureConnectionElements
AG StandardAluminium16 barBSPFF/MF/SMF/PE/AK/HTNX
AG SuperplusAluminium premium16 barG threadFF/MF/SMF/PE/AK/HTNX
SG SteelSteel16 barDN 50 – DN 300FF/MF/SMF/PE/AK/HTNX
HD High-pressureAl (PN25–64) / carbon steel (PN100–400)up to 400 barBSP / NPTAll standard elements
P-EGSS 1.4301 (304) / 1.4404 (316L)16 bar (0006–0192) / 12 bar (0288) / 10 bar (0432–1920)BSP / NPT thread · flange (all sizes)P-GS / P-SRF / P-SWM
PG-EGSS 1.4301 (304) / 1.4404 (316L)16 bar (0006–0192) / 10 bar (0432–1920)Clamp (0006–0192) / DIN flange from 0432P-GS / P-SRF
PF-EGThis productSS 1.4404 (316L)10 bar (0012–0600) · 8 bar (0675–1800)Milkpipe acc. to DIN 11851PF membrane cartridges
Large Housings
PF-EG — Large Sizes 0675 to 2400
SizeElementsRated flow (water)ConnectionMax pressure (liquids)
PF-EG 06759 × 30″675 l/minDIN 11851 DN658 bar · −10/90 °C
PF-EG 090012 × 30″900 l/minDIN 11851 DN808 bar · −10/90 °C
PF-EG 135018 × 30″1,350 l/minDIN 11851 DN808 bar · −10/90 °C
PF-EG 180024 × 30″1,800 l/minDIN 11851 DN1008 bar · −10/90 °C
PF-EG 2400Project design32 × 30″2,400 l/minClamp DN150 (DIN 32676-B)4.8 bar(g) operating · 6 bar(g) design · 110 °C

Rated flow = water at 20 °C for element types PP, PP100 and SM, 25 l/min per 10″ of element. Sizes 0675 to 2400 carry a lower pressure rating than the standard sizes (10 bar at 50 °C). PF-EG 2400 is built as a project design to ASME VIII Div. 1. Other connection variants on request. The PF-EG datasheet covers all sizes; dimensions and weights of the large sizes on request. Size the right housing for your duty with the liquid sizing tool.

Where It's Used
Applications & Industries
Chemical processing

316L stainless housing with bayonet-connection PF cartridges for liquid filtration in aggressive chemical process lines.

Aseptic packing & fermentation

Sanitary liquid housing ahead of aseptic filling lines and fermentation process streams, sized to standard PF membrane cartridges.

Pharmaceutical & biotech

316L construction and PF-series membrane compatibility for pharmaceutical and biotech liquid process filtration duties.

Breweries, dairies & F&B

DIN 11851 milkpipe connection option and hygienic Ra ≤ 0.8 µm finish for brewery, dairy and food & beverage liquid lines.

Cosmetics & water treatment

Corrosion-resistant sanitary housing for cosmetics formulation liquids and water treatment process filtration.
