Liquid HighFlow prefilter — PP

PF-UF
Polypropylene HighFlow Filter

Large-diameter polypropylene HighFlow cartridges for high-volume water, RO and process-liquid filtration — absolute-rated 1 · 3 · 5 · 10 · 20 µm (other ratings on request), inside-to-out flow, thermally bonded for minimal extractables.

FDA 21 CFR · EC 1935/2004 6" HighFlow cage 20" / 40" / 60"
1 µm
Finest grade
20 µm
Coarsest grade
5 grades
Micron ratings available
4.55 m²
Filtration area — 40" cartridge
Beta 5000
Absolute rating (OSU-F2)
1325 L/min
Max flow — 40" cartridge

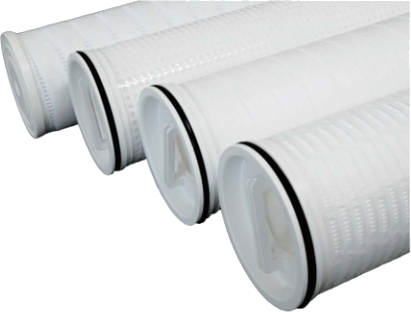

PF-UF polypropylene HighFlow filter cartridges
PF-UF — Polypropylene HighFlow Filter
Sizes available
3 · 20" / 40" / 60"
⌀ 6" cage (152 mm)
Retention & Performance
Filter mediaPolypropylene (100% PP)
Micron ratings1 · 3 · 5 · 10 · 20 µm; other ratings on request
Rating typeAbsolute — Beta 5000, single-pass OSU-F2
Filtration area2.23 m² (20″) · 4.55 m² (40″) · 6.87 m² (60″)
Max flow rate662 · 1325 · 1892 L/min (20″/40″/60″)
Max operating temp.60 °C @ 1.4 bar (140 °F @ 20 psid)
Construction
ConstructionPleated PP, spacer-mesh pleat support
Outer core / end capsPolypropylene
O-ringsEPDM · Buna-N · Silicone · Viton
CertificationsFDA 21 CFR 177 · EC 1935/2004
Dimensions
Outside diameter6″ cage (152 mm)
Lengths20″ · 40″ · 60″
ApplicationsWater · RO/desalination · power · electronics · F&B · chemicals
Quick Actions
Request a Quote → Talk to an Engineer Download Datasheet → Size this element →
Certifications
Replacing a competitor?
Tell us your current HighFlow / big-diameter element — we'll confirm the direct match.
Cross-Reference Tool →
Liquid Filtration Family
PF-UF — Liquid Filtration Element Range
CodeMediaPore sizeKey propertyPrimary duty
PF-PESPolyethersulphone0.1 · 0.2 · 0.45 · 0.65 · 1.2 µmNaturally hydrophilic · LRV ≥ 7 (0.2 µm grade)Sterile liquid · pharma · beverage
PF-PPPolypropylene0.10 µm · 0.20 µm · 0.50 µm · 0.65 µm (PF-PP-C · depth filtration) · 0.5–10 µm (pre-filter)Chemical resistant · Retention by grade and particle sizeAggressive media · food · chemical
PF-UFThis productPolypropylene (HighFlow, 6″ cage)1 · 3 · 5 · 10 · 20 µm; other ratings on requestLarge area · high flowHigh-volume water polish · membrane pre-filter
PF-PTePTFE0.2 µmHydrophobic · up to 100 forward SIP cycles (30 min at 135 °C)Sterile gas/vent · aggressive liquid
PF-PVDFPVDF0.1/0.2/0.45/0.65/1.0 µmLRV ≥ 7 (0.2 µm grade) · low extractablesCold and hot WFI · antibiotics · chemicals · sanitising agents
PF-N6Nylon 66 (positive-zeta option)SL 0.1 · 0.2 · 0.45 · 0.8 · 1.0 · 3.0 · 5.0 µm · DL 0.1 + 0.1 · 0.2 + 0.2 · 0.45 + 0.2 · 1.0 + 0.45 · 1.2 + 0.45 µmInherently hydrophilic · LRV ≥ 7 (0.2 µm grades)WFI · LVP · biological solutions
PF-BEVHydrophilic PES (double-layer)0.2 + 0.1 · 0.2 + 0.2 · 0.45 + 0.2 · 0.65 + 0.2 · 0.45 + 0.45 · 0.65 + 0.45 µmDouble-layer · LRV ≥ 7 (0.1 / 0.2 µm final layer)Wine · beer · juice · water
Where It's Used
Applications & Industries
Water, RO & desalination

High-volume prefiltration ahead of reverse osmosis, desalination and process water systems — large surface area keeps ΔP low and extends membrane life.

Liquid hub →
Power & electronics process water

Listed duty per the PF-UF datasheet — high-flow polypropylene prefiltration for power-plant and electronics ultrapure-water intake trains.

Liquid hub →
Food & Beverage prefilter

Meets EC 1935/2004 food-contact requirements — a membrane pre-filter or a final polishing filter where membrane filtration is not required, on F&B lines.

Food & Beverage →
Chemicals, coolants & waste water

Excellent chemical compatibility from 100% thermal-bonded PP construction — listed duty for chemical processing, coolant and waste-water streams.

Liquid hub →
Liquid filtration hub

Full PF cartridge family for liquid prefiltration and final filtration — housings, sizing and replacement finder.

Liquid hub →
Documents
Downloads
Datasheet
PF-UF Technical Datasheet
DS_04_PF-UF_EN_Rev4 · PDF
Alt. configuration
PF-UF3 — Polypropylene high-flow depth cartridge, 6.5 inch (165 mm) diameter, outside-to-inside flow
DS_04_PF-UF3_EN_Rev3 · PDF
ISO Certificate
ISO 9001 Quality Certificate
DIN EN ISO 9001 · PDF
