Housing · Compressed Air · Aluminium · Standard

AG Standard
Aluminium Compressed Air Housing

Standard aluminium compressed air filter housing — 16 bar, BSP connections, 1 element per housing. Accepts all FF/MF/SMF/PE/AK/HTNX elements.

16 bar · 65 °C Float drain 14 sizes
16 bar
Max pressure
BSP
Connection type
65 °C
Max. operating temperature (design temperature 120 °C)
Aluminium
Body material
Sizes
0002 → 0288
Elements
FF · MF · SMF · PE · AK

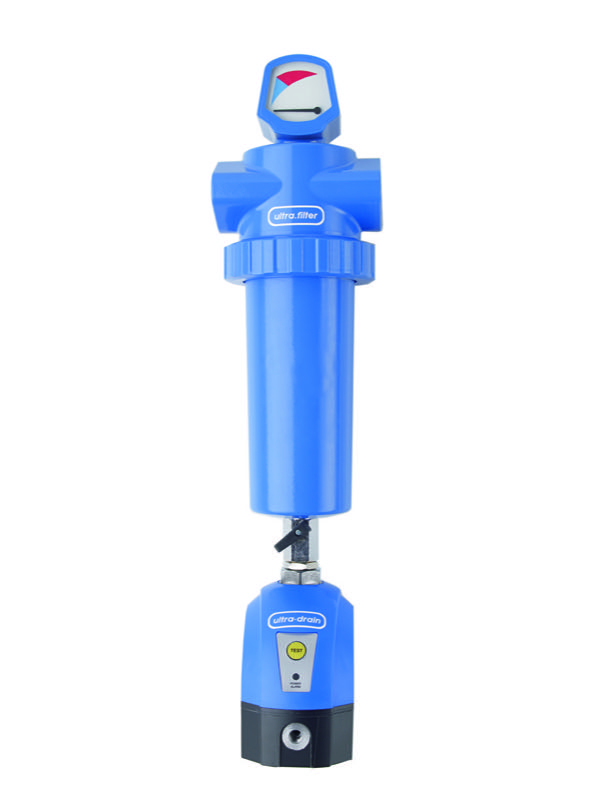

AG Standard housing
AG Standard — Aluminium Compressed Air Housing
Sizes available
14 · 02/05 → 30/50
Housing Specification
Body materialAluminium (epoxy-resin coated)
Max pressure16 bar (232 psi)
Max. operating temperature65 °C (design temperature 120 °C)
ConnectionG 1/4 … G3 (thread)
DrainFloat drain, included
Construction & Compatibility
Screw locking ringAluminium
SealsNBR (std)
Sizes0002 – 0288 (14 sizes) · element formats 02/05 – 30/50
Compatible elementsFF · MF · SMF · PE · AK · AKC · HTNX
Quick Actions
Request a Quote → Talk to an Engineer Download Datasheet → Size your housing →
Certifications
Replacing a competitor?
Look up your current part number
Cross-Reference Tool →
Housing Family
AG Standard — Filter Housing Range
CodeMaterialMax pressureConnectionElements
AG StandardThis productAluminium16 barBSPFF/MF/SMF/PE/AK/HTNX
AG SuperplusAluminium premium16 barG threadFF/MF/SMF/PE/AK/HTNX
SG SteelSteel16 barDN 50 – DN 300FF/MF/SMF/PE/AK/HTNX
HD High-pressureAl (PN25–64) / carbon steel (PN100–400)up to 400 barBSP / NPTAll standard elements
P-EGSS 1.4301 (304) / 1.4404 (316L)16 bar (0006–0192) / 12 bar (0288) / 10 bar (0432–1920)BSP / NPT thread · flange (all sizes)P-GS / P-SRF / P-SWM
PG-EGSS 1.4301 (304) / 1.4404 (316L)16 bar (0006–0192) / 10 bar (0432–1920)Clamp (0006–0192) / DIN flange from 0432P-GS / P-SRF
PF-EGSS 1.4404 (316L)10 bar (0012–0600) · 8 bar (0675–1800)Milkpipe acc. to DIN 11851PF membrane cartridges
Where It's Used
Applications & Industries
General plant air

Workshop tools, pneumatics and valve actuators. First protection in the compressed-air line.

Compressed Air hub →
Upstream of dryers

Removes bulk water and oil before desiccant or refrigeration dryers, protecting the bed.

Pre-stage for fine filters

Absorbs bulk load so MF and SMF elements work on fine contamination only — extends service life.

Food & beverage

First stage before sterile P-SRF elements in food and beverage compressed-air trains.

F&B hub →
Pre-dryer protection

Protects desiccant bed from oil and water load that would reduce drying capacity.
