Family C · Adsorption · Final stage

AK Activated Carbon Adsorber
Compressed Air Filter Element

Embedded granular activated carbon removes vapour-phase oil, hydrocarbons and odour. Residual oil < 0.003 mg/m³ with appropriate pre-treatment (residual oil < 0.01 mg/m³, e.g. SMF).

Residual oil < 0.003 mg/m³ (with SMF) 0.07 bar initial ΔP
< 0.003 mg/m³
Residual oil (pre-treated)
Class 2
Particle separation per ISO 8573-1 achievable (outlet depth stage)
0.07 bar
Initial ΔP
60 °C
Max service temp
2 Stages
Depth filter + activated carbon
SMF req.
Pre-treatment required

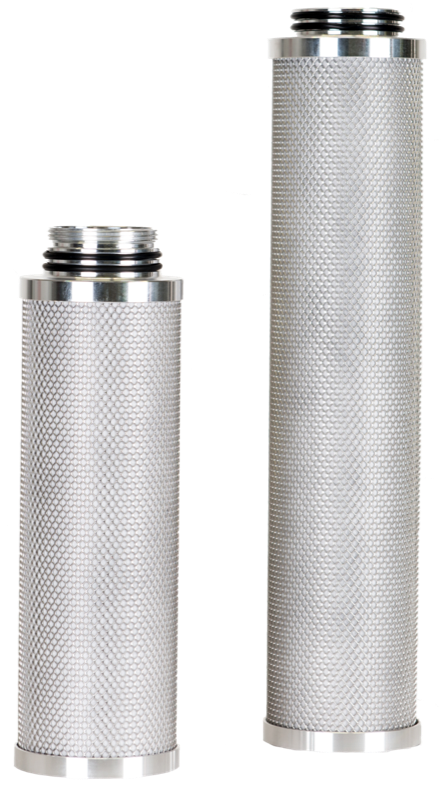

AK filter element
AK — Activated Carbon Adsorber
Activated carbon
Retention & Performance
Residual oil (with SMF pre-tx)< 0.003 mg/m³
ISO 8573-1 particle separationClass 2 achievable (outlet depth stage)
Pre-treatment requiredResidual oil < 0.01 mg/m³, e.g. by SMF
RemovesOil vapour · HC · odour
Operating Limits
Operating temp+10 → +40 °C (max +60 °C)
Construction
Adsorption mediumGranular AC in PUR ester foam
Depth mediumBorosilicate microfibre
Support sleevesSS 304
O-ringsPerbunan, silicone-free
Source: AK datasheet · All values from published datasheet
Quick Actions
Request a Quote → Talk to an Engineer Download Datasheet → Size this element →
Certifications
Replacing a competitor?
Look up your current part number
Cross-Reference Tool →
Activated Carbon Element Family
AK — Activated Carbon Element Range
CodeTypeRetentionResidual oilStart ΔPMax TDuty
PESintered PE pre-filter25 µm abs.—0.03 bar80 °CParticle pre-filter, down to 25 µm
SSSintered SS 316L pre-filter1/5/25 µm——210 °CHot & aggressive media
FFUltra Fibre fine coalescer0.01 µm< 0.1 mg/m³0.04 bar80 / 120 / 180 °C1st coalescing stage
MFUltra Fibre micro coalescer0.01 µm< 0.03 mg/m³0.08 bar80 / 120 / 180 °C2nd coalescing stage
SMFUltra Fibre super-micro0.01 µm< 0.01 mg/m³0.09 bar80 / 120 / 180 °C3rd coalescing stage
AKThis productActivated carbon adsorberVapour-phase< 0.003 mg/m³, with pre-treatment0.07 bar60 °CFinal vapour & odour
AKCGranular AC + post-filterVapour-phase< 0.003 mg/m³, with pre-treatment—60 °CAC + post-filter retrofit
HTNXAramid jacket specialtyAbsolute——180 °CNH₃ · CO₂ · hot gas
Where It's Used
Applications & Industries
General plant air

Workshop tools, pneumatics and valve actuators. First protection in the compressed-air line.

Compressed Air hub →
Upstream of dryers

Removes bulk water and oil before desiccant or refrigeration dryers, protecting the bed.

Pre-stage for fine filters

Absorbs bulk load so MF and SMF elements work on fine contamination only — extends service life.

Food & beverage

First stage before sterile P-SRF elements in food and beverage compressed-air trains.

F&B hub →
Pre-dryer protection

Protects desiccant bed from oil and water load that would reduce drying capacity.

Cross-reference

Replaces

Competitor filter families with a verified Ultrafilter equivalent from this range:

Atlas Copco element (< 1995) → UF AK upgrade element · Atlas Copco element (1995 – 2001) → UF AK upgrade element · Atlas Copco element (2001 – today) → UF AK upgrade element · BEKO CLEARPOINT element ...A (classic, pre-3eco) → UF AK · BEKO element (pre-2002, FE series) → UF AK · CompAir element → UF AK upgrade element · Domnick Hunter element → UF AK upgrade element · Domnick Hunter OIL-X EVOLUTION element ACS · Donaldson AK / P-AK Adsorption (Activated Carbon) Filter · Donaldson AK / UF AK (80's series, old size codes) · Donaldson AKP / UF AKP UltraPure silicone-free element · Hiross element → UF AK upgrade element · all 14 cross-references →
