Family C · Adsorption · Retrofit

AKC ultra.pure Granular AC + Post-filter
Compressed Air Filter Element

Granular activated carbon adsorption plus integrated nano-fibre post-filter — two stages in one cartridge. Lower-cost alternative to the oil vapour absorber; can be retrofitted into existing filter housing.

Residual oil < 0.003 mg/m³ (with SMF) Low ΔP · retrofit
< 0.003 mg/m³
Residual oil (pre-treated)
Cl. 2
Achievable particle class
2-in-1
AC + post-filter
60 °C
Max service temp
6 sizes
04/20 → 10/30 · 120–720 m³/h (20 °C, 1 bar abs, at 7 bar g)
SMF req.
Pre-treatment required

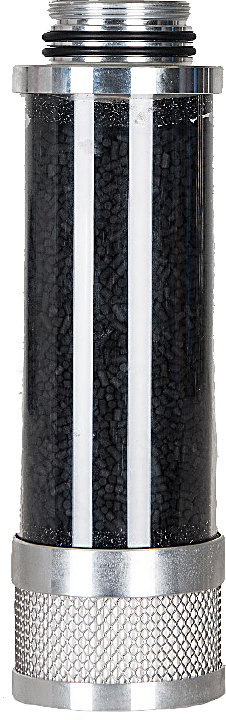

AKC filter element
AKC — ultra.pure Granular AC + Post-filter
Activated carbon
Sizes available
6 · 04/20 → 10/30
Retention & Performance
Residual oil (with pre-tx)< 0.003 mg/m³
ISO 8573-1 particleCl. 2 achievable
Pre-treatment requiredResidual oil < 0.01 mg/m³, e.g. by SMF
RemovesOil vapour · HC · odour
Operating Limits
Operating temp+10 → +40 °C (max +60 °C)
Construction
AdsorptionGranular AC in polyester housing
Post-filter mediaNano-fibre fleece · fibreglass
End capsAluminium
O-ringsPerbunan, silicone-free
Sizes6 · 04/20 → 10/30 (120–720 m³/h, related to 20 °C and 1 bar abs, based on 7 bar g)
Source: AKC datasheet · All values from published datasheet
Quick Actions
Request a Quote → Talk to an Engineer Download Datasheet → Size this element →
Certifications
Replacing a competitor?
Look up your current part number
Cross-Reference Tool →
Activated Carbon Canister Element Family
AKC — Activated Carbon Canister Element Range
CodeTypeRetentionResidual oilStart ΔPMax TDuty
PESintered PE pre-filter25 µm abs.—0.03 bar80 °CParticle pre-filter, down to 25 µm
SSSintered SS 316L pre-filter1/5/25 µm——210 °CHot & aggressive media
FFUltra Fibre fine coalescer0.01 µm< 0.1 mg/m³0.04 bar80 / 120 / 180 °C1st coalescing stage
MFUltra Fibre micro coalescer0.01 µm< 0.03 mg/m³0.08 bar80 / 120 / 180 °C2nd coalescing stage
SMFUltra Fibre super-micro0.01 µm< 0.01 mg/m³0.09 bar80 / 120 / 180 °C3rd coalescing stage
AKActivated carbon adsorberVapour-phase< 0.003 mg/m³, with pre-treatment0.07 bar60 °CFinal vapour & odour
AKCThis productGranular AC + post-filterVapour-phase< 0.003 mg/m³, with pre-treatment—60 °CAC + post-filter retrofit
HTNXAramid jacket specialtyAbsolute——180 °CNH₃ · CO₂ · hot gas
Where It's Used
Applications & Industries
General plant air

Workshop tools, pneumatics and valve actuators. First protection in the compressed-air line.

Compressed Air hub →
Upstream of dryers

Removes bulk water and oil before desiccant or refrigeration dryers, protecting the bed.

Pre-stage for fine filters

Absorbs bulk load so MF and SMF elements work on fine contamination only — extends service life.

Food & beverage

First stage before sterile P-SRF elements in food and beverage compressed-air trains.

F&B hub →
Pre-dryer protection

Protects desiccant bed from oil and water load that would reduce drying capacity.
