Housing · Compressed Air · 6 pressure stages · PN 25 – PN 400

HD High-pressure
High-Pressure Filter Housing

High-pressure compressed air and gas filter housing — up to 400 bar (PN25–PN400), BSP / NPT connections. For instrument air, nitrogen and high-pressure process gas applications.

Directive 2014/68/EU · fluid group 2 30–720 m³/h 8 sizes
up to 400 bar
Max pressure (PN25–PN400)
BSP / NPT
Connection types, 1/4″ – 2″
-10/+80 °C
Temperature range
Al (PN25–64) / C-steel (PN100–400)
Body material
8 sizes
PN25 – PN400
Elements
FF · MF · SMF · PE

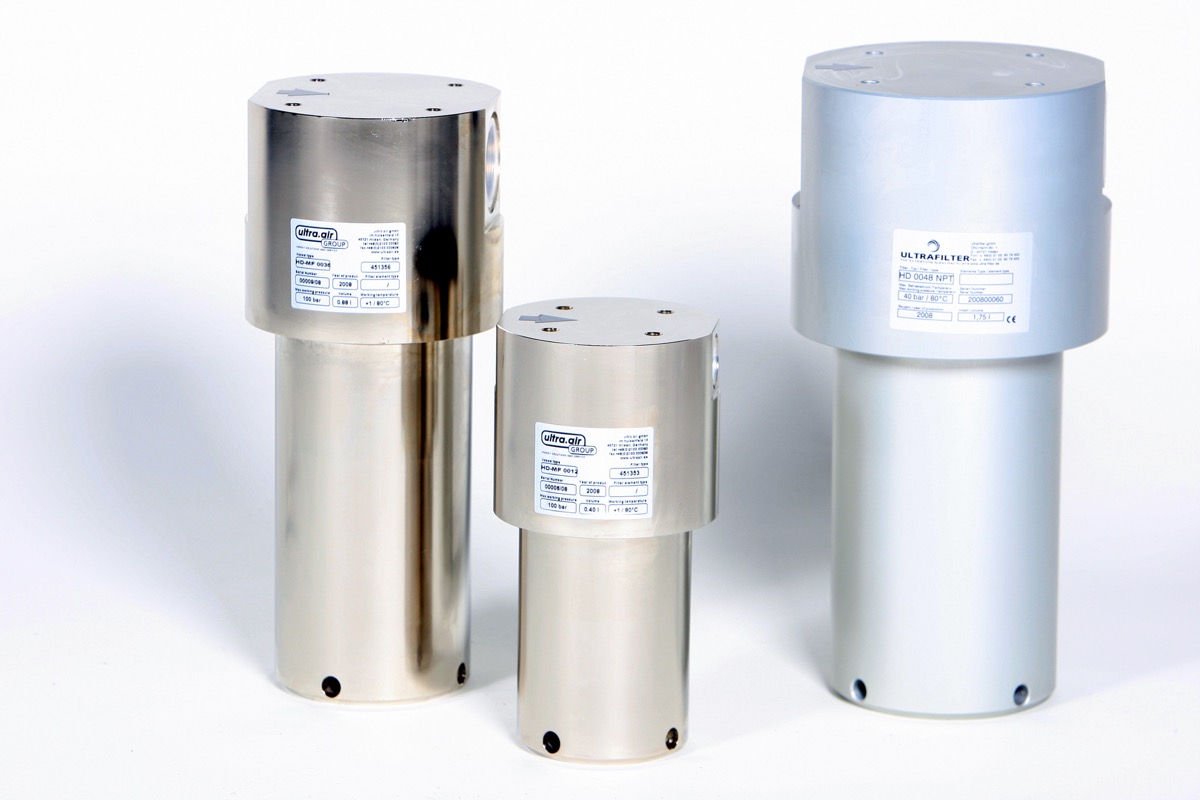

HD High-pressure housing
HD High-pressure — High-Pressure Filter Housing
Sizes available
8 sizes · PN25 – PN400
Housing Specification
Body materialaluminium EN AW 5754 (PN25–PN64) / carbon steel 22.8 (PN100–PN400)
Max pressureup to 400 bar (PN25–PN400)
Max temperature-10/+80 °C
ConnectionBSP / NPT, 1/4″ – 2″
ApplicationInstrument air · N₂ · high-pressure gas
Standards & Certification
ClassificationClassified acc. to Directive 2014/68/EU, fluid group 2
Construction & Compatibility
SealsNBR (std)
SizesPN25 / PN40 / PN64 / PN100 / PN250 / PN400 · up to 400 bar
Compatible elementsFF · MF · SMF · PE
