Housing · Tank Vent · SS 304 (std)/316L (opt) · P-BE

P-BE

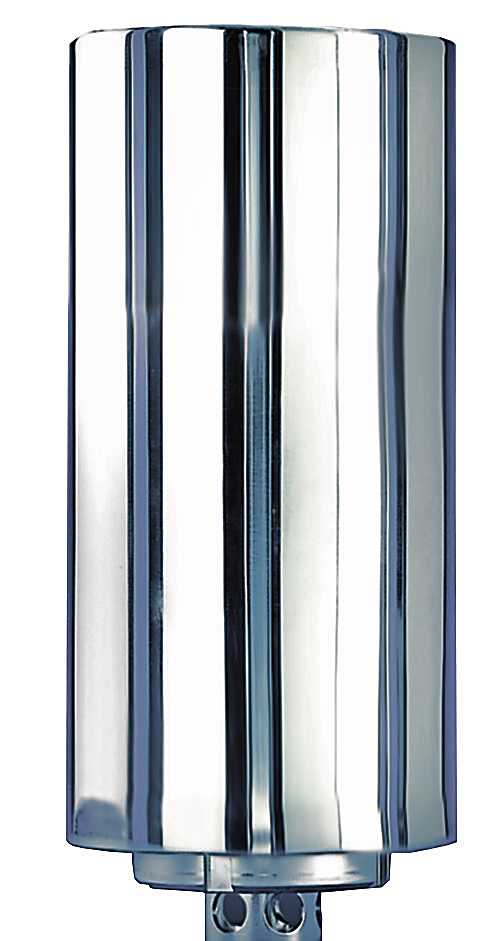

Sterile Tank Vent Housing

Name: P-BE Sterile Tank Vent Housing
Brand: Ultrafilter

Stainless steel two-part vent housing for storage-tank, fermenter and process-vessel venting — 12 sizes for volume flows from 4.5 m³/h at Δp 20 mbar to 2,100 m³/h at Δp 40 mbar. 16 bar (0006–0192) / 10 bar (0432–1920), DIN 11851 milkpipe or DIN/ANSI flange connections, built-in splash protection, PED 2014/68/EU compliant.

PED 2014/68/EU Splash Protection 12 sizes

P-BE — Sterile Tank Vent Housing

Sizes available

12 sizes · 0006–1920

Housing Specification

Body materialSS 1.4301 (304) standard · 1.4404 (316L) optional

Max pressure16 bar (0006–0192) · 10 bar (0432–1920)

Max. operating temperature200 °C (392 °F)

ConnectionDIN 11851 milkpipe (standard, 0006–0192) · DIN EN 1092-1 / ANSI flange (standard, from 0432) · clamp / bigger sizes on request

Construction & Compatibility

Sizes0006 to 1920 (12 sizes)

DoCEU 2014/68/EU PED

Compatible elementsP-BE sterile vent filter · PF-PT PTFE membrane

P-BE element pageView P-BE element →

Quick Actions

Request a Quote → Talk to an Engineer Download Datasheet → Size your housing →

Certifications

Replacing a competitor?

Look up your current part number

Cross-Reference Tool →

Where It Fits

Related Process Housings

P-BE Housing is the dedicated vent housing for the P-BE element line. For in-line process-gas filtration on compressed-air or steam lines, use P-EG (threaded) or PG-EG (clamp). For liquid filtration, use PF-EG.

Need the element too?

P-BE Element — 99.99998 % related to 0.2 µm, 6 sizes Min. 100 sterilisation cycles

View P-BE Element →

Code	Duty	Connection	Elements
P-EG	In-line process gas (compressed air / steam)	BSP / NPT thread (0006–0288) · DIN / ANSI flange (all sizes)	P-GS · P-SRF · P-SWM
PG-EG	In-line pharma process gas	Clamp (0006–0192) / DIN flange from 0432	P-GS · P-SRF
PF-EG	Liquid filtration	Milkpipe acc. to DIN 11851 Standard · Top of housing DN 40 clamp connection	PF membrane cartridges

Where It's Used

Applications & Industries

Pharma storage-tank venting

Sterile venting for pharmaceutical storage tanks and WFI vessels — splash protection keeps liquid off the filter media.

Fermenter vent

Sterile venting of fermenters.

Chemical storage venting

Sterile and particulate protection on chemical storage tank vents, polished housing for straightforward cleaning.

Breweries & dairies

Tank vent duty across brewery and dairy storage and process vessels, including food and beverage tank venting.

Water treatment & cosmetics

Process-vessel sterile venting for water treatment systems and cosmetics industry storage tanks.

Documents

Downloads

Datasheet

P-BE Housing Technical Datasheet

DS_02_P-BE-Housings_EN_Rev3 · PDF

ISO Certificate

ISO 9001 Quality Certificate

DIN EN ISO 9001 · PDF

Replacing a competitor's housing?

Look up your current part number

Open Cross-Reference →

Specify P-BE.
We'll confirm the fit.

Send your tank volume, fill/drain rates and CIP cycle parameters. A filtration engineer responds with the housing, the element and a quote.
