Family A · Particulate · Stage 01 pre-filter

PE Sintered Polyethylene Pre-filter
Compressed Air Filter Element

Sintered polyethylene depth filter removes rust, scale and coarse particulate to 25 µm absolute — the first line of defence before the coalescing train.

25 µm absolute 0.03 bar initial ΔP 14 sizes
25 µm
Absolute retention
100%
Retention rate related to 25 µm
0.03 bar
Initial ΔP
2 bar
Max ΔP
-20/+80 °C
Temperature range
14 sizes
02/05 → 30/50

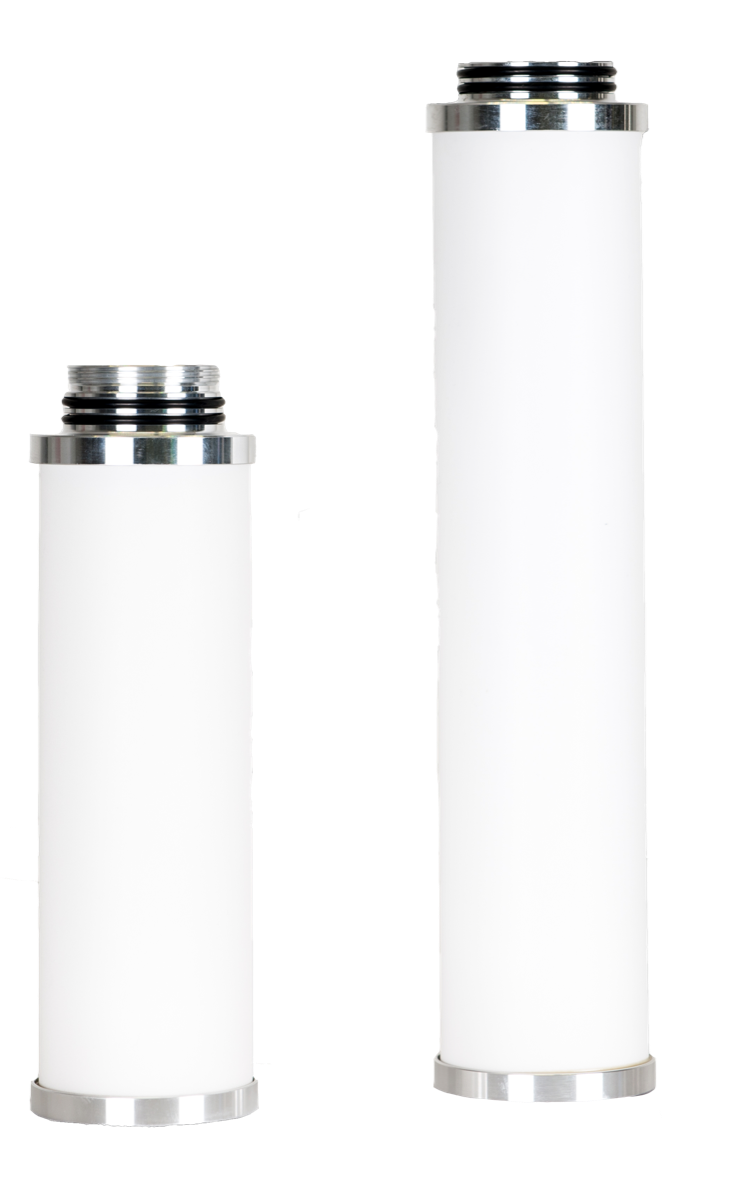

PE filter element
PE — Sintered Polyethylene Pre-filter
Sintered polyethylene
Sizes available
14 · 02/05 → 30/50
Retention & Performance
Particle retention25 µm absolute
Retention rate100 % related to 25 µm
Operating Limits
Operating temp-20 °C → +80 °C
Construction
Filter mediumSintered polyethylene depth
MechanismDirect impact + sieve
End capsAluminium
O-ringsPerbunan, silicone-free
Source: PE datasheet · All values from published datasheet
Quick Actions
Request a Quote → Talk to an Engineer Download Datasheet → Size this element →
Certifications
Replacing a competitor?
Look up your current part number
Cross-Reference Tool →
Sintered PE Depth Element Family
PE — Sintered PE Depth Element Range
CodeTypeRetentionResidual oilStart ΔPMax TDuty
PEThis productSintered PE pre-filter25 µm abs.—0.03 bar80 °CParticle pre-filter, down to 25 µm
SSSintered SS 316L pre-filter1/5/25 µm——210 °CHot & aggressive media
FFUltra Fibre fine coalescer0.01 µm< 0.1 mg/m³0.04 bar80 / 120 / 180 °C1st coalescing stage
MFUltra Fibre micro coalescer0.01 µm< 0.03 mg/m³0.08 bar80 / 120 / 180 °C2nd coalescing stage
SMFUltra Fibre super-micro0.01 µm< 0.01 mg/m³0.09 bar80 / 120 / 180 °C3rd coalescing stage
AKActivated carbon adsorberVapour-phase< 0.003 mg/m³, with pre-treatment0.07 bar60 °CFinal vapour & odour
AKCGranular AC + post-filterVapour-phase< 0.003 mg/m³, with pre-treatment—60 °CAC + post-filter retrofit
HTNXAramid jacket specialtyAbsolute——180 °CNH₃ · CO₂ · hot gas
Where It's Used
Applications & Industries
General plant air

Workshop tools, pneumatics and valve actuators. First protection in the compressed-air line.

Compressed Air hub →
Upstream of dryers

Removes bulk water and oil before desiccant or refrigeration dryers, protecting the bed.

Pre-stage for fine filters

Absorbs bulk load so MF and SMF elements work on fine contamination only — extends service life.

Food & beverage

First stage before sterile P-SRF elements in food and beverage compressed-air trains.

F&B hub →
Pre-dryer protection

Protects desiccant bed from oil and water load that would reduce drying capacity.

Cross-reference

Replaces

Competitor filter families with a verified Ultrafilter equivalent from this range:

BEKO CLEARPOINT element ...C (classic, pre-3eco) → UF PE · BEKO element (pre-2002, FE series) → UF PE · CompAir element → UF PE upgrade element · Domnick Hunter element → UF PE upgrade element · Donaldson PE / UF PE Sintered Polyethylene Pre-Filter · Donaldson PEP / UF PEP UltraPure silicone-free element · Donaldson V-PE / UF V-PE (80's series, old size codes) · Walker Filtration Walker element (E series) → UF PE
