Steel Compressed Air Housing

Steel compressed air filter housing — max. operating pressure 16 bar (232 psi), DN 50 – DN 300 flange connections, epoxy-resin coated body. For applications beyond the standard aluminium range.

16 bar · 120 °C design DN 50–DN 300 flange 13 sizes
16 bar
Max pressure
DN 50 – DN 300
Flange connection
120 °C
Design temperature
Steel
Body material
13 sizes
DN 50 – DN 300
Elements
FF · MF · SMF · PE · AK

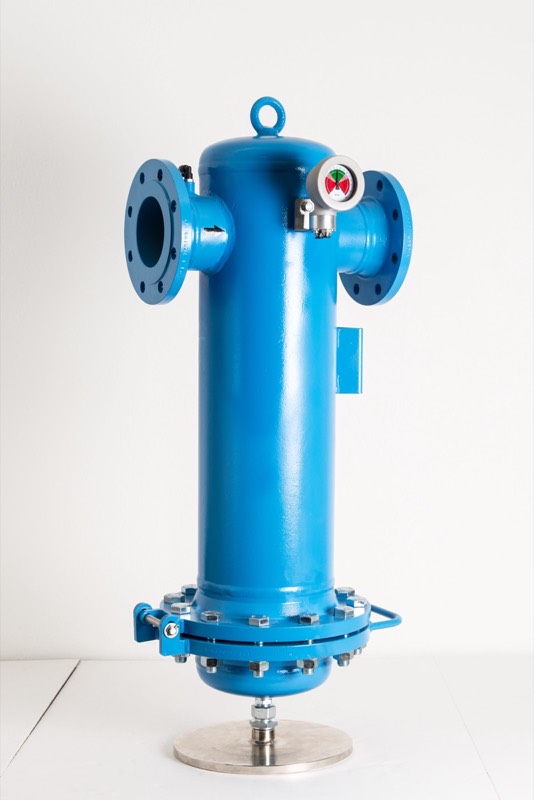

SG Steel housing
SG Steel — Steel Compressed Air Housing
Sizes available
13 sizes · DN 50 – DN 300
Housing Specification
Body materialSteel (epoxy-resin coated)
Max pressure16 bar (232 psi)
Design temperature120 °C (248 °F)
ConnectionDN 50 – DN 300 flange
DrainElectronically controlled (level-controlled, zero air loss)
Standards & Certification
Where to useLarge-format / high-flow duty
Construction & Compatibility
SealsNBR (std)
Sizes13 sizes — 0108–0288, DN 50–80 (1 element) · 0432–0576, DN 100 (3 elements) · 0768–1152, DN 150 (4–6 elements) · 1536–1920, DN 200 (8–10 elements) · 2304–3072, DN 250 (12–16 elements) · 3840, DN 300 (20 elements)
Compatible elementsFF · MF · SMF · PE · AK · AKC · HTNX
Quick Actions
Request a Quote → Talk to an Engineer Download Datasheet → Size your housing →
Certifications
Replacing a competitor?
Look up your current part number
Cross-Reference Tool →
Housing Family
SG Steel — Filter Housing Range
CodeMaterialMax pressureConnectionElements
AG StandardAluminium16 barBSPFF/MF/SMF/PE/AK/HTNX
AG SuperplusAluminium premium16 barG threadFF/MF/SMF/PE/AK/HTNX
SG SteelThis productSteel16 barDN 50 – DN 300FF/MF/SMF/PE/AK/HTNX
HD High-pressureAl (PN25–64) / carbon steel (PN100–400)up to 400 barBSP / NPTAll standard elements
P-EGSS 1.4301 (304) / 1.4404 (316L)16 bar (0006–0192) / 12 bar (0288) / 10 bar (0432–1920)BSP / NPT thread · flange (all sizes)P-GS / P-SRF / P-SWM
PG-EGSS 1.4301 (304) / 1.4404 (316L)16 bar (0006–0192) / 10 bar (0432–1920)Clamp (0006–0192) / DIN flange from 0432P-GS / P-SRF
PF-EGSS 1.4404 (316L)10 bar (0012–0600) · 8 bar (0675–1800)Milkpipe acc. to DIN 11851PF membrane cartridges
