Family A · Particulate · Regenerable

SS Sintered Stainless Pre-filter
Compressed Air Filter Element

Sintered 316L stainless where polyethylene cannot go — hot gases, aggressive chemistry and elevated temperature. Three retention grades, −20 °C up to 210 °C, regenerable with ultrasonic bath.

5 bar max ΔP 210 °C · regenerable 13 sizes
1/5/25 µm
Retention grades
210 °C
Max. temperature (−20 °C up to 210 °C)
98%
Efficiency · steam
Regenerable
with ultrasonic bath
5 bar
Max ΔP
13 sizes
03/10 → 30/50

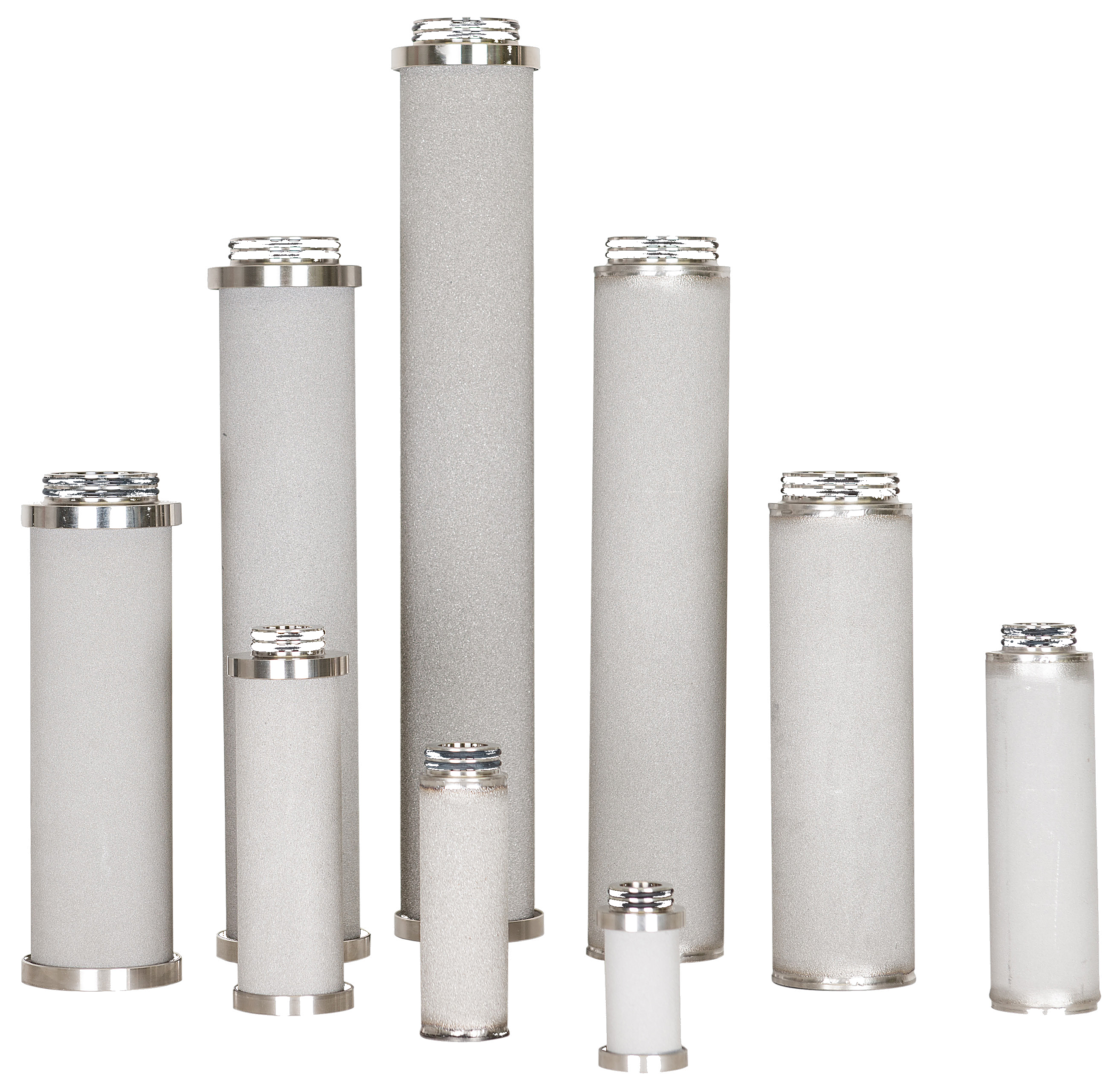

SS sintered stainless filter element
SS — Sintered Stainless Pre-filter
Sintered stainless steel
Sizes available
13 · 03/10 → 30/50
A: 76 – 764 mm
Retention & Performance
Retention grades1 / 5 / 25 µm absolute
Efficiency · steam98%
Operating Limits
Temperature range−20 °C up to 210 °C (−4 °F up to 410 °F)
Construction
Filter mediumSintered SS 1.4404 (316L)
End capsSS 1.4301 (304) · > 150 °C welded end caps
O-rings standardEPM, max. approx. 180 °C; above 180 °C only with special O-rings (Fluoraz)
O-rings on requestSilicone · Buna N · Viton
Source: SS datasheet · All values from published datasheet
Quick Actions
Request a Quote → Talk to an Engineer Download Datasheet → Size this element →
Certifications
Replacing a competitor?
Look up your current part number
Cross-Reference Tool →
Stainless Steel Element Family
SS — Stainless Steel Element Range
CodeTypeRetentionResidual oilStart ΔPMax TDuty
PESintered PE pre-filter25 µm abs.—0.03 bar80 °CParticle pre-filter, down to 25 µm
SSThis productSintered SS 316L pre-filter1/5/25 µm——210 °CHot & aggressive media
FFUltra Fibre fine coalescer0.01 µm< 0.1 mg/m³0.04 bar80 / 120 / 180 °C1st coalescing stage
MFUltra Fibre micro coalescer0.01 µm< 0.03 mg/m³0.08 bar80 / 120 / 180 °C2nd coalescing stage
SMFUltra Fibre super-micro0.01 µm< 0.01 mg/m³0.09 bar80 / 120 / 180 °C3rd coalescing stage
AKActivated carbon adsorberVapour-phase< 0.003 mg/m³, with pre-treatment0.07 bar60 °CFinal vapour & odour
AKCGranular AC + post-filterVapour-phase< 0.003 mg/m³, with pre-treatment—60 °CAC + post-filter retrofit
HTNXAramid jacket specialtyAbsolute——180 °CNH₃ · CO₂ · hot gas
Where It's Used
Applications & Industries
General plant air

Workshop tools, pneumatics and valve actuators. First protection in the compressed-air line.

Compressed Air hub →
Upstream of dryers

Removes bulk water and oil before desiccant or refrigeration dryers, protecting the bed.

Pre-stage for fine filters

Absorbs bulk load so MF and SMF elements work on fine contamination only — extends service life.

Food & beverage

First stage before sterile P-SRF elements in food and beverage compressed-air trains.

F&B hub →
Pre-dryer protection

Protects desiccant bed from oil and water load that would reduce drying capacity.
