Liquid & Gas Filtration · Stainless Steel Mesh · P-SM

P-SM

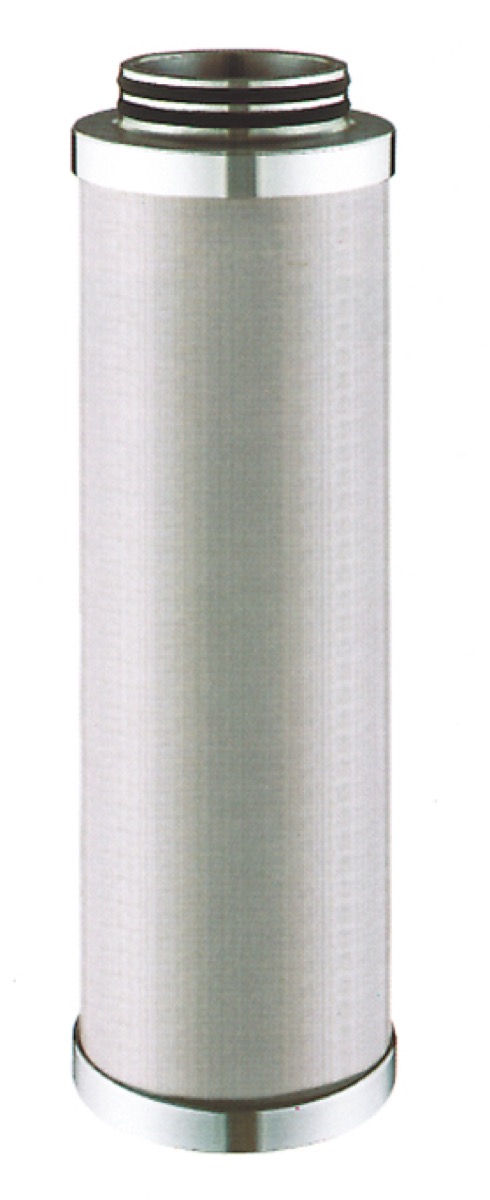

Stainless Steel Mesh Filter

Name: P-SM Stainless Steel Mesh Filter Element
Brand: Ultrafilter

Stainless steel mesh pre- and final filter element — removes particles from aqueous solutions, water and other liquids, as well as gases; 1 to 250 µm absolute, regenerable; filter media and end caps SS 1.4301 (304), multi-layered stainless steel mesh with welded contact points.

5 bar max ΔP 13 sizes

P-SM — Stainless Steel Mesh Filter

Sizes available

13 · 03/10 → 30/50

A: 76 – 764 mm

Retention & Performance

Retention grades1 to 250 µm

Media compatibilityAqueous solutions, water and other liquids, as well as gases

Operating Limits

Service temp-20 → +210 °C

Construction

Filter typeSS welded mesh 1.4301 (304)

End capsSS 1.4301 (304)

O-ringsEPM standard, max. approx. 180 °C; above 180 °C only with special O-rings (Fluoraz)

RegenerationMultiple regeneration · Ultrasonic bath keeps filtration costs low

Quick Actions

Request a Quote → Talk to an Engineer Download Datasheet → Size this element →

Certifications

ISO 9001 (company)

Replacing a competitor?

Look up your current part number

Cross-Reference Tool →

← Clean Steam hub

Steam Filtration Family

P-SM — Steam Filtration Element Range

Code	Type	Retention	Max Temp	Primary duty
P-GS	Sintered SS steam filter	1 / 5 / 25 µm	+210 °C	Culinary steam · clean steam
P-GS VE	Sintered SS, welded end caps	1 / 5 / 25 µm	+210 °C	Steam service above 150 °C
P-SWM	Pleated SS mesh	1 / 5 / 25 µm absolute	+210 °C	Fine steam / gas particle filtration
P-SMThis product	SS welded mesh 304	1 – 250 µm	+210 °C	Liquid · gas pre- and final filter

Where It's Used

Applications & Industries

Pre- and final filtration

Removes particles from aqueous solutions, water and other liquids, as well as gases — e.g. water filtration, syrup, coolants and biological liquids.

Liquid process lines

Aggressive liquid and solvent filtration — all 304 SS construction handles corrosive media across a wide temperature range.

Process gas

Particulate removal from process gas streams — regenerable by ultrasonic bath or backflush for long service life.

High-temperature service

Temperature range −20 °C to 210 °C; welded end caps above 150 °C.

Regenerable duty

Multiple regeneration — ultrasonic bath keeps filtration costs low, especially at high contaminant load.

Documents

Downloads

Datasheet

P-SM Technical Datasheet

DS_02_P-SM_EN_Rev3 · PDF

ISO Certificate

ISO 9001 Quality Certificate

DIN EN ISO 9001 · PDF
