Steam Filtration · Sintered Stainless · P-GS

P-GS
Culinary Steam Filter Element

Sintered stainless steel filter element for culinary and clean steam — 1, 5 and 25 µm grades, 98 % efficiency for steam. P-GS steam elements comply with 3-A Accepted Practice 609-03 (manufacturer certificate on request).

5 bar max ΔP 13 sizes
1 µm
Finest grade
5 µm
Standard grade
25 µm
Coarse grade
98 %
Efficiency for steam
> 50 %
Porosity
210 °C
Range −20 °C to 210 °C

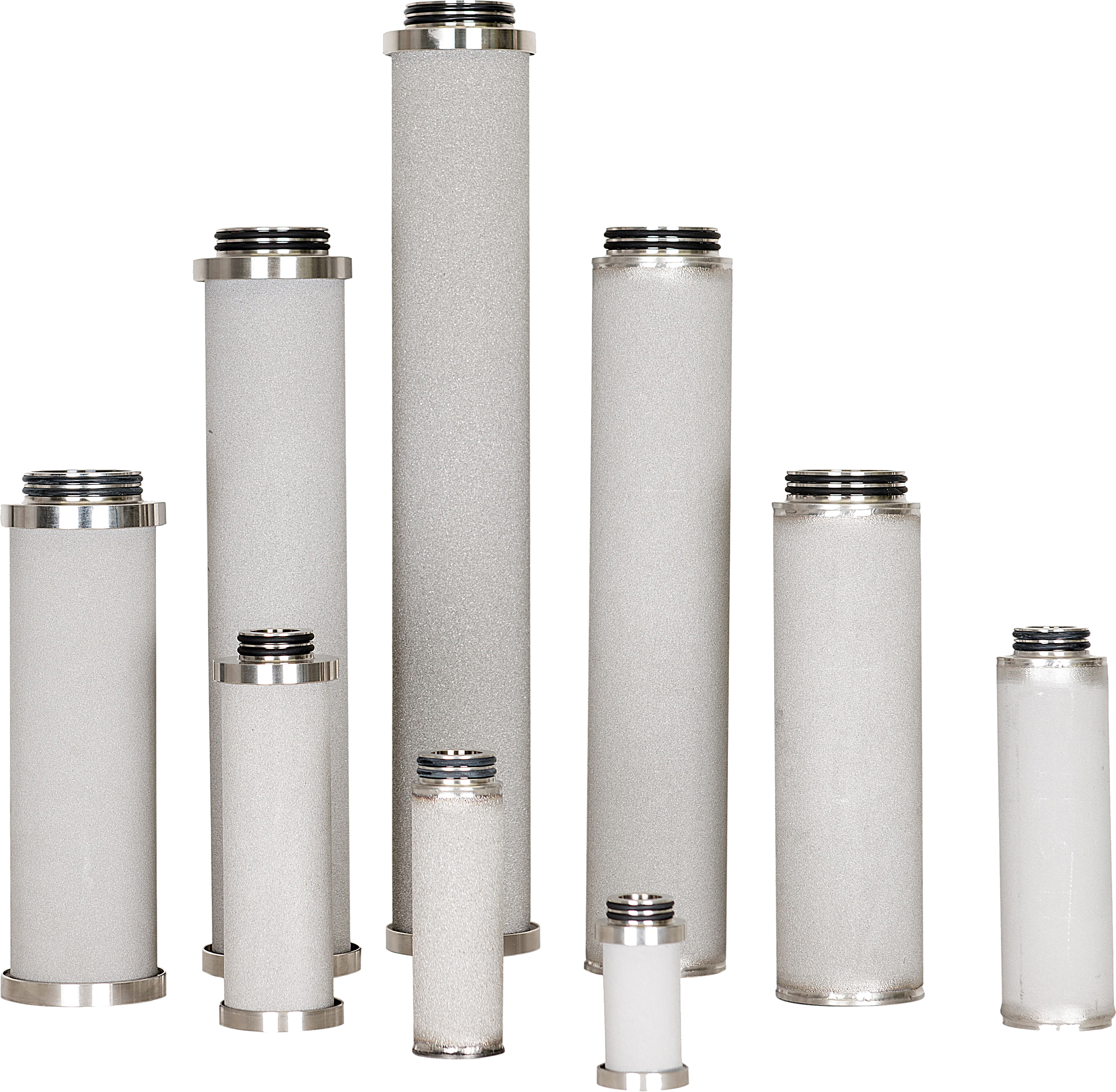

P-GS steam filter element
P-GS — Culinary Steam Filter Element
Sizes available
13 sizes, 03/10 to 30/50
A: 76 – 764 mm
Retention & Performance
Retention grades1 / 5 / 25 µm
Retention efficiency98 % for steam
Operating Limits
Temperature range−20 °C to 210 °C
Construction
Filter typeSintered SS 1.4404 (316L)
End caps / sealsSS 1.4301 (304)
O-ringsEPM (max. approx. 180 °C); above 180 °C special O-rings (Fluoraz)
3-AComplies with 3-A Accepted Practice 609-03 (manufacturer certificate on request)
Quick Actions
Request a Quote → Talk to an Engineer Download Datasheet → Size this element →
Certifications
3-A Accepted Practice 609-03 (manufacturer certificate on request)
ISO 9001 (company)
Replacing a competitor?
Look up your current part number
Cross-Reference Tool →
← Clean Steam hub
Steam Filtration Family
P-GS — Steam Filtration Element Range
CodeTypeRetentionMax TempPrimary duty
P-GSThis productSintered SS steam filter1 / 5 / 25 µm+210 °CCulinary steam · clean steam
P-GS VESintered SS, welded end caps1 / 5 / 25 µm+210 °CSteam service above 150 °C
P-SWMPleated SS mesh1 / 5 / 25 µm absolute+210 °CFine steam / gas particle filtration
P-SMSS welded mesh 3041 – 250 µm+210 °CLiquid · gas pre- and final filter
Where It's Used
Applications & Industries
Culinary steam

Culinary steam filtration in food and beverage manufacturing — 1/5/25 µm grades.

Clean steam (pharma)

Utility steam for sterilisation and SIP circuits — sintered 316L resists repeated thermal cycling to 210 °C.

Dairy processing

Steam supply filtration for UHT, pasteurisation and CIP heating circuits in dairy plants.

Brewing & distilling

Inline steam filtration ahead of kettles and stills where particulate-free steam quality is required.

Gases, liquids and steam

Removal of particles, 1 / 5 / 25 µm absolute retention rate; 98 % efficiency for steam.

Documents
Downloads
Datasheet
P-GS Technical Datasheet
DS_03_P-GS_EN_Rev4 · PDF
ISO Certificate
ISO 9001 Quality Certificate
DIN EN ISO 9001 · PDF
