P-SWM
Pleated Stainless Steel Particle Filter

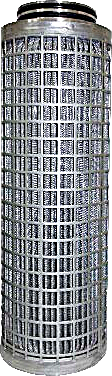

Name: P-SWM Pleated Stainless Steel Mesh Filter Element
Brand: Ultrafilter

Pleated stainless steel mesh filter element for fine steam and gas particle filtration — 1 / 5 / 25 µm absolute, 0.18 m² filtration area per 10/30 element, pleated alternative to sintered P-GS, rated to 210 °C, regenerable.

14 sizes

P-SWM — Pleated Stainless Steel Particle Filter

Sizes available

14 · 03/10 → 30/50

A: 75 – 761 mm

Retention & Performance

Retention grades1 / 5 / 25 µm absolute

PurposeFine steam / gas filtration — pleated alternative to sintered P-GS

Operating Limits

Service temp-20 → +210 °C (>180 °C: special O-rings)

Construction

Filter typePleated SS mesh 1.4404 (316L)

End capsSS 1.4301 (304)

O-ringsEPM standard, max. approx. 180 °C; above 180 °C special O-rings (Fluoraz) required

RegenerationMultiple regeneration with ultrasound and backwashing

3-AP-SWM elements comply with the requirements of 3-A Accepted Practice 609-03 (manufacturer certificate on request).

Quick Actions

Request a Quote → Talk to an Engineer Download Datasheet → Size this element →

Certifications

3-A Accepted Practice 609-03 (manufacturer certificate on request)

ISO 9001 (company)

Replacing a competitor?

Look up your current part number

Cross-Reference Tool →

← Clean Steam hub

Steam Filtration Family

P-SWM — Steam Filtration Element Range

Code	Type	Retention	Max Temp	Primary duty
P-GS	Sintered SS steam filter	1 / 5 / 25 µm	+210 °C	Culinary steam · clean steam
P-GS VE	Sintered SS, welded end caps	1 / 5 / 25 µm	+210 °C	Steam service above 150 °C
P-SWMThis product	Pleated SS mesh 316L	1 / 5 / 25 µm absolute	+210 °C	Fine steam / gas — pleated alternative to P-GS
P-SM	SS welded mesh 304	1 – 250 µm	+210 °C	Liquid · gas pre- and final filter

Where It's Used

Applications & Industries

Fine steam filtration

1/5/25 µm absolute particle removal from culinary and clean steam — higher effective filter area than sintered P-GS in the same housing.

High-load service

Regenerable by ultrasonic bath or backflush — suited to applications with high particle burden where frequent element changes are unacceptable.

Dairy & brewing

Breweries and dairies: particle filtration of steam, gases and liquids, 1 / 5 / 25 µm.

Pharmaceutical utility

Utility steam and gas filtration in pharma plant rooms — all-stainless, no binders or fibres to shed.

Documents

Downloads

Datasheet

P-SWM Technical Datasheet

DS_03_P-SWM_EN_Rev3 · PDF

ISO Certificate

ISO 9001 Quality Certificate

DIN EN ISO 9001 · PDF
